Hardened Fusion Splice-On Connector (H-FSOC)
Features
- » Hardened FSOC
- » For Robust Environment
- » Suitable for outside plant environment
- » No cable slack required
Application
- » Superior optical, mechanical and environmental performance

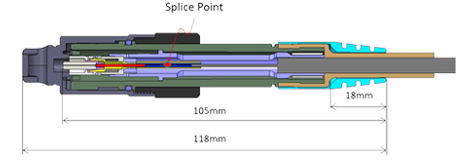

- » Splicing point and its protective tube located inside the connector
- » Improvement of quality and reliability reduces maintenance cost and labor cost dramatically
- » Reduction of installation cost
- » Field stripping available for the SOC

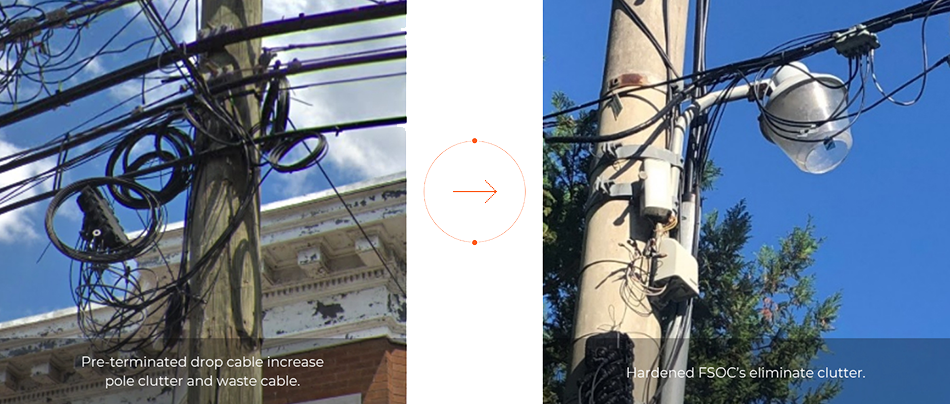

- » Provides neatly organized cables on the pole
- » Applicable cables: 5.8 mm drop cable, 5.0 mm drop cable 5.4 x 3.0 mm ROC drop cable, 8.1 x 4.5 mm SST drop cable
Add to Inquiry
Hardened FSOC
Hardened drop cables and connectors are environmentally robust to provide a reliable interface in the outside plant environment. The hardened connectors combined with field-installable fusion technology simplifies installation and maintenance easily in the FTTP(Fiber to the premises) network. The hardened fusion splice-on connectors are rugged to protect against extreme temperature, moisture, UV, chemical exposure and other harsh conditions typically found in the outside plant. Field-installable hardened fusion splice-on connectors can be cost savings for wasted cable slack and provide perfect quality with fusion termination and neatly organized cables on the pole. There are applicable cable types, such as 5.8mm drop cable, 5.0mm drop cable, 5.4x3.0mm ROC flat drop cable, and 8.1x4.5mm SST flat drop cable.
Key-Specifications
Insertion Loss (Typical)
IL: Typ. 0.15dB, Max. 0.3dB
Return loss (Typical)
RL: SM: ≥55dB (UPC), ≥60dB(APC), MM: ≥30dB
Thermal Age Testing
85°C, 7 days
Thermal Cycle Test
-40°C to +75°C, 7days, Dwell time -1hour
Humidity Aging Test
75°C, 95% RH, 7days, measurements every 6hrs minimum
Humidity/Condensation Cycling Test
-10°C to +65°C, 90% ~ 100% RH, 7days
Dry-Out Step
24hrs@75°C, uncontrolled humidity
Post-Condensation Thermal Cycle Test
-40°C to +75°C, 7days, Dwell time -1hour
Vibration Test
10 ~ 55Hz, 45Hz/min, 2hours @ amplitude of 1.5mm X/Y/Z Axis
Water Resistance
No water intrusion after 7days, 10ft water head
Flex Test
8flex cycles @ +/-90°; 4.5kgf (-10lbf) load, -30°C and 40°C
Cable Torsion
10Torsion cycles @ +/-90°, -30°C and 40°C, Twist 1meter back
Proof Test
Plug/Cap Straight pull (0°), 20kgf(100 lbf), 10minutes
Transmission with Applied Tensile Load
0°, 90°, 135° respectively, 6.8kgf, 30mins
Impact
5m drop 3axes on rigid flat surface
Durability
50 matings
Seal Under Load
7days @ 23°C, 10ft water head, 2.5lb - 90°, no damage
