K33A (All In One)
Features
- » Core Alignment ALL IN ONE system provides the best workability

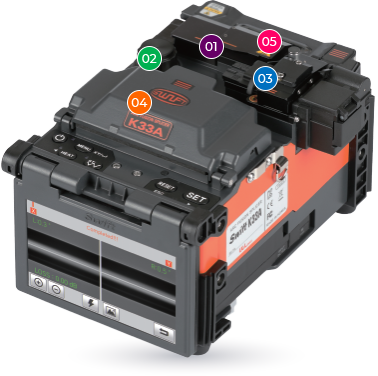

- » Integrated 5 functions in one unit (Stripping, cleaving, cleaning, splicing and splice protection)
- » Resistance to Shock, Dust and Water
- » Weight: 2.45 kg
Application
- » Providing remote maintenance service via Internet
- » Electrode life: up to 18,000 splices
- » Typical splice loss: SM: 0.02 dB, MM:0.01 dB, DS: 0.04 dB, NZDS: 0.04 dB
Add to Inquiry
K33A

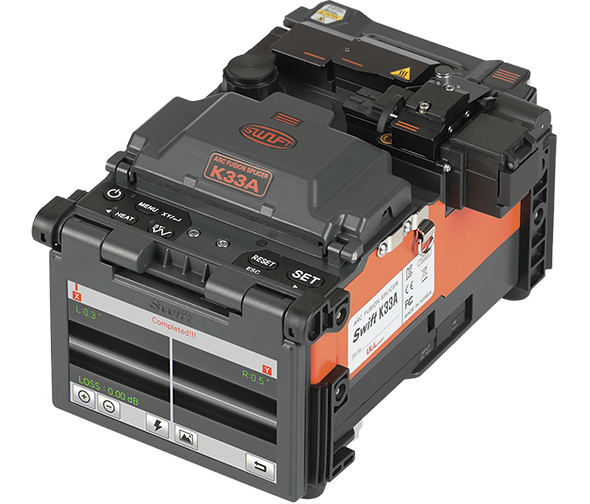

Swift K33A is the highly advanced and accurate IPAAS Core-to-Core alignment fusion splicer, which has all-in-one features as follows: stripping, cleaning, cleaving, splicing and sleeving. And also Swift K33A can be used for terminating the fusion Splice-On Connector (SOC) for FTTH network and Data Center.
Key-Specifications
Fiber alignment
IPAAS Core Alignment
Fiber cleave length
250um: 5 ~ 16 mm, 900um: 8 ~ 16 mm
Typical splice loss
SM: 0.02 dB, MM:0.01 dB, DS: 0.04 dB, NZDS: 0.04 dB
Splicing time
Typical 9 seconds
Sleeve heating time
9 sec (IS-45 mode), 13 sec (IS-60 mode)
Tension test
2N / 4.4N (optional)
Dimensions
136 (W) x 215 (L) x 137 (H) mm (excluding bumper)
Weight
2.45 kg (including battery)
No. of splice cycles with battery
Typical 200 cycles (4,700mAh)
Electrode life
Up to 18,000 splices
Blade life
Up to 75,000 fibers, optional 110,000 fibers
