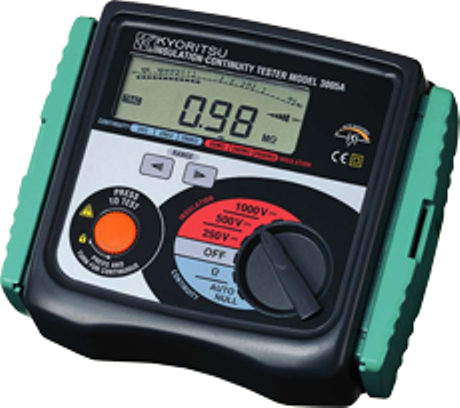

Kyoritsu 3005A Insulation Tester
Features
- » Bargraph to display insulation resistance.
- » Displays the value of external AC voltage along with flashing symbol.
- » Auto null function to automatically subtract the test lead resistance before displaying the real continuity resistance value.
Application
- » Live circuit warning beeper.
- » Releasing the test button automatically discharges the charges stored in the circuit under test
- » 200mA continuity measuring current to IEC 61557.
- » Minimum 1mA current on insulation tests to IEC 61557.
Add to Inquiry

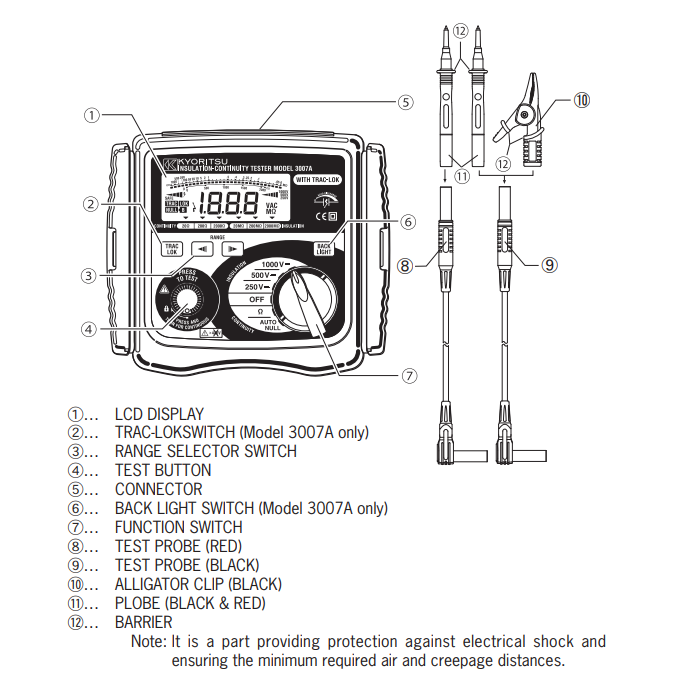

Kyoritsu 3005/3007A Insulation Tester
MODEL-3005A/3007A are microprocessor controlled insulation-continuity testers are designed to safety standards; display with back light function to facilitate work at night or dimly lit locations (Model 3007A only); bar graph to indicate measured results; strap belt to make both hands’ operation easier; live circuit warning indication and buzzer; auto discharge function; auto power off function; LOK mode (Model 3007A only)
Key-Specifications
Insulation Resistance: Test voltage
250V/500V/1000V
Insulation Resistance: Measuring ranges (Mid-scale value)
20MΩ/200MΩ/2000MΩ
Insulation Resistance: Output voltage on open circuit
Rated test voltage+20%, -0%
Insulation Resistance: Nominal current
1mA DC min.
Insulation Resistance: Output short circuit current
1.5 mA DC approx.
Insulation Resistance: Accuracy
±1.5%rdg±5dgt (20MΩ/200MΩ) ±10%rdg ±3dgt (2000MΩ)
Continuity Test: Measuring ranges (Mid-scale value)
20Ω/200Ω/2000Ω
Continuity Test: Output voltage on open circuit
7 - 12V DC
Continuity Test: Measuring current
200mA DC min.
Continuity Test: Accuracy
±1.5%rdg±5dgt (20Ω) ±1.5%rdg±3dgt (200Ω/2000Ω)
AC Voltage: AC voltage range
0 - 600V AC
AC Voltage: Accuracy
±5%rdg±3dgt
